IEC60529 IP4X IEC61320 Figure 4 IP test finger probe Test rod probe D with force
IP4X Test Rod Probe D SC-F4D-F:
This probe conforms to the standard requirement of IEC61032 figure 4 test probe D and IEC60529 for IP4
and IEC60065. This rod probe is intended to verify the protection of persons against access to hazardous
parts. It is also used to verify the protection against access with a wire.
Customizable:
It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure
protection test when open threaded hole of M6 at the end of the handle (connected with pull and push
dynamometer) .The probe whose model number is with "T" is with force.
Parameters:
| Parameters /Model | SC-F4D-F |
| Name | Test rod probe D with force |
| 1 | Ф1+0.05 0 |
| 2 | SФ35±0.2 |
| 3 | Ф10 |
| 4 | 100±0.2 |
| 5 | ---- |
| 6 | 3N force |
| 14 | IEC60529 |
Other IP test probes
These probes conforms to IEC60529 for IP1X IP2X IP3X
Specification and technical parameters:
I) IP1X Test sphere probe SC-F1A-F
It conforms to the standard requirements of IEC61032 fig.1, IEC60529 IP1 and IEC60065.
This probe is intended to verify protection the back of hand of persons against access to hazardous parts.
It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.
This test probe can be customized. It can be used for anti-electric shock test when equipped with amphenol
connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle
(connected with pull and push dynamometer) .
The probe whose model number is with "T" is with force.
| Parameters /Model | SC-F1A-F |
| Name | Test probe A with force |
| 1 | SФ50+0.05 0 |
| 2 | Ф45±0.2 |
| 3 | Ф10 |
| 4 | 4 |
| 5 | 100 |
| 6 | With force of 50N |
| 7 | IEC60529 |
II)IP2X Test Finger Probe B SC-F2B-F
This is a precision test finger made in accordance with many standards like IEC 61032 figure 2, IEC60950
figure 2A,IEC60884,IEC60335,UL507,and UL1278 figure 8.4. This probe is intended to verify the basic
protection against access to hazardous parts. It is also used to verify the protection against access with a
finger. This test finger probe consists of dito,finger,base and insulated handle which simulates the characteristics
of the human hand. It has two movable joints, which can be curved at 90°.
Customizable: it can be used for anti-electric shock test when equipped with pluggable banana plugs and
amphenol connector at the end of the handle , or used for enclosure protection test when open threaded
hole of M6 at the end of the handle (connected with pull and push dynamometer).
Main specification and corresponding technical parameters:
| Parameters /Model | SC-F2B-F |
| Name | Standard test finger with force |
| 1 | 30±0.2 |
| 2 | 60±0.2 |
| 3 | 80±0.2 |
| 4 | 180±0.2 |
| 5 | R2±0.05 |
| 6 | S4±0.05 |
| 7 | 37o 0 -10’ |
| 8 | 14 o 0 -10’ |
| 9 | Ф12 0 -0.05 |
| 10 | Ф50 |
| 11 | 20±0.2 |
| 12 | Ф75±0.2 |
| 13 | 5±0.5 |
| 14 | 10-30N force |
| 15 | IEC60529 |
III) IP3X Test Rod Probe C SC-F3C-F
This probe conforms to standard requirements of IEC61032 test probe C and IEC60529 for IP3 and IEC60065.
This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to
verify the protection against access with a tool.
Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for
enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push
dynamometer) .
The probe whose model number is with "T" is with force.
| Parameters /Model | SC-F3C-F |
| Name | Test rod probe C with force |
| 1 | Ф2.5+0.05 0 |
| 2 | SФ35±0.2 |
| 3 | Ф10 |
| 4 | 100±0.2 |
| 5 | ---- |

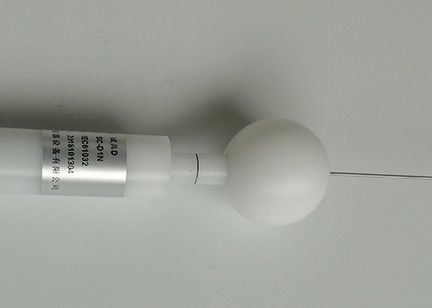

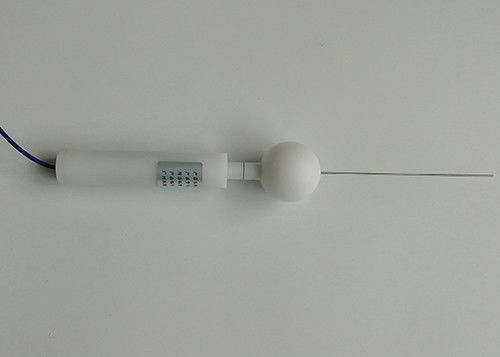

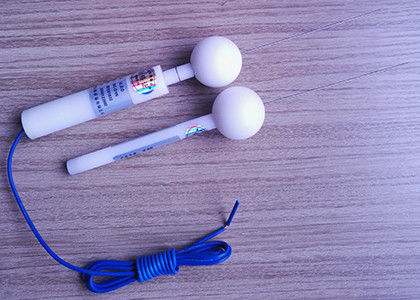

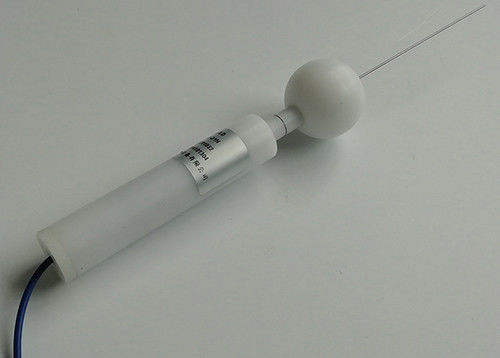

IP1X, IP2X, IP3X, IP4X pictures:
