제품 상세 정보:
결제 및 배송 조건:
|
| 제어: | PLC 제어 | 디스플레이: | 7 인치 터치스크린 |
|---|---|---|---|
| 선반 건축: | 강철, 스테인레스 강, 기타 등등을 코팅한 우수한 알루미늄 | 힘: | AC 220V 50HZ |
| 작동 속도: | 50±10 1분에, 시속은 조정할 수 있습니다 | 구부리는 각: | 조정할 수 있는 0-180이' 좌우에 각각 조정할 수 있는 0-90' 입니다 |
| 역: | 단 하나 역 | 계수기 검정과 절점: | 0-999999는 미리 설정될 수 있습니다 |
| 하이 라이트: | CSA 가전제품 시험 장비,50HZ 가전제품 시험 장비,시험 기계를 만곡시키는 SGS 주입구 배수관 |
||

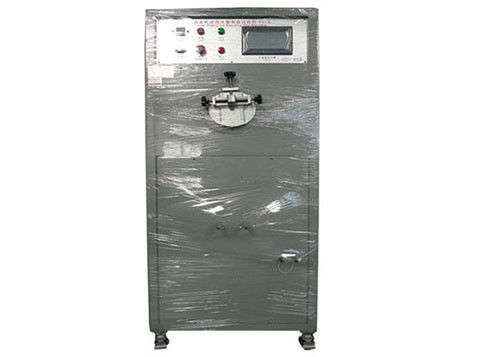

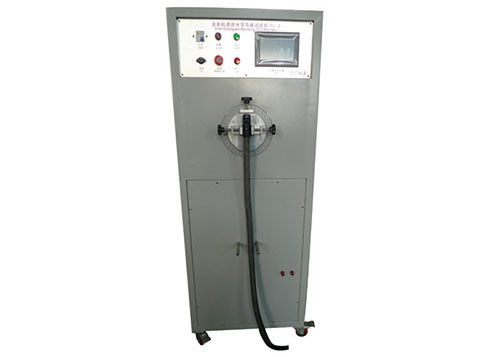

Inlet Drainpipe Bending Test Machine For Washing Machine With Touch Screen
Product information:
This tester is according to GB/T4288-2008 standard of household electric washing machine to design and manufacture, suitable for inlet and drain-pipe of the washing machines for bending life test, it can also suitable for bending test of the power cord.

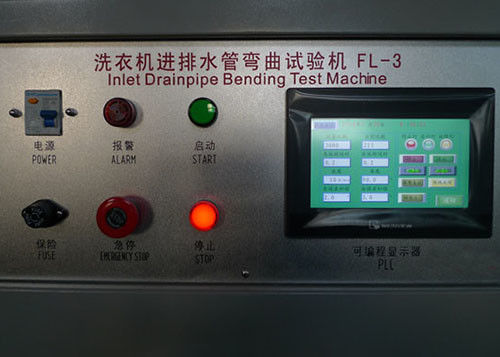

This instrument uses PLC control, 7-inch color touch screen operation to setup parameters, and by a stepping motor and synchronous belt drive to achieve manipulator reciprocal pendulum movements, thus to test the bending performance of the water inlet and drain-pipe of the washing machines. The number of test times, angle and speed can be preset, it will automatically shut down when arrive to the preset times.
Technical specifications and parameters:
| Control | PLC control,7 inch touch screen |
| Display mode | Touch screen display |
| Rack construction | High-grade aluminum, coating steel, stainless steel, etc. |
| Power supply | AC 220V 50HZ |

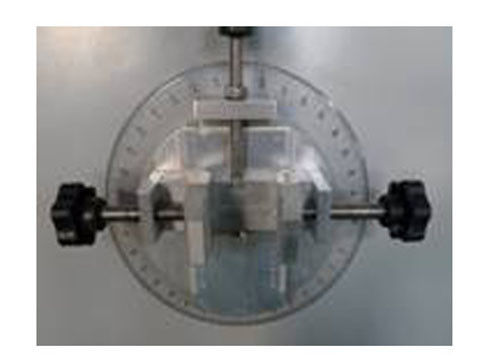

| Specimen clamping mechanism | A convenient and accurate specimen card installed, eccentricity 60mm, clamping test range 0-60mm, both suitable for water inlet and drain-pipe bending test and bending test of the power cord |
| Working speed | 50±10 per minute,speed is adjustable |
| Counter test and nodal points |
0-999999 can be preset; First the sample bend 0-90 ° from vertical position to the left side, count after it come back to the vertical position, and then bend 0-90°from the right side, count again when come back to vertical position, it will not make any stop during the middle vertical position |
| Bending angle | 0-180°adjustable ,right and left each is 0-90°,adjustable |
| Station | Single station |
| Operating environment | Normal temperature |
| Meet the standards | GB4288-2008 |
This device consists of:
